Zeolite Membrane (*PV / VP Separation)Environmental Plant

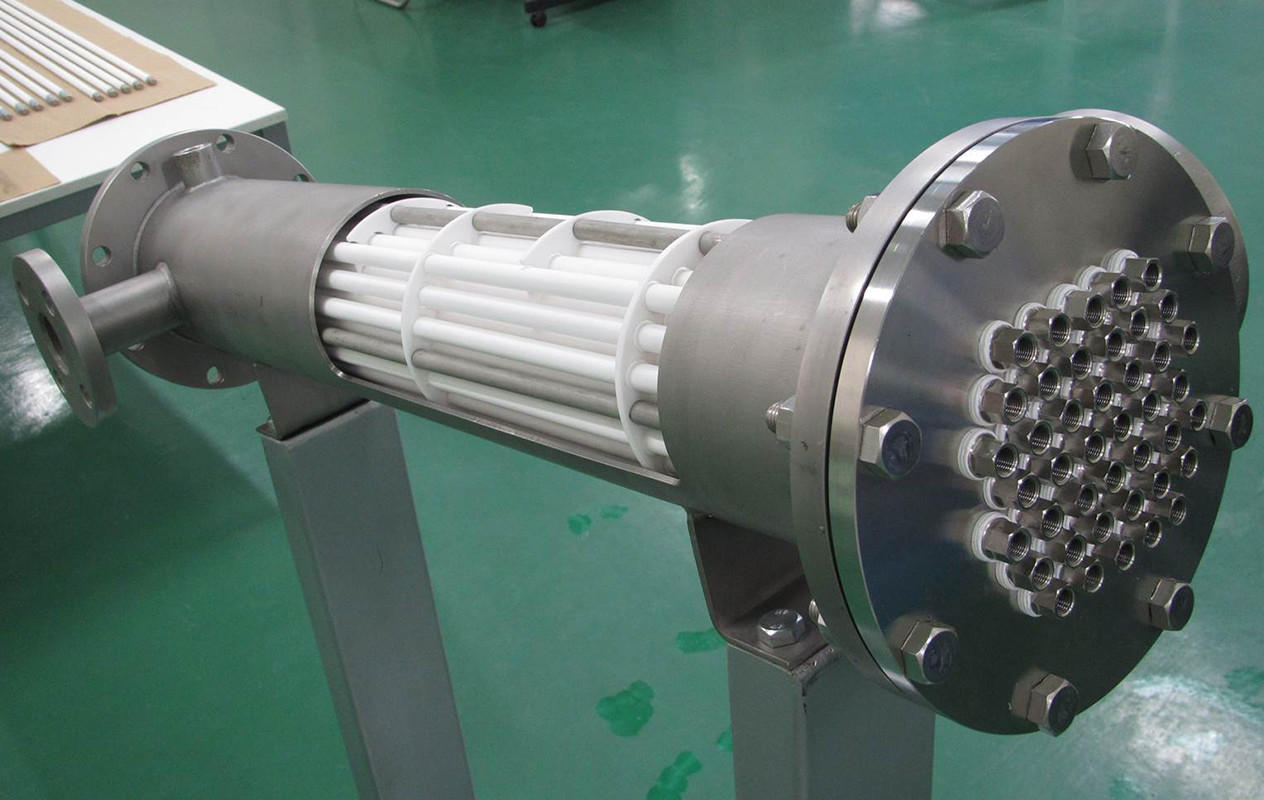

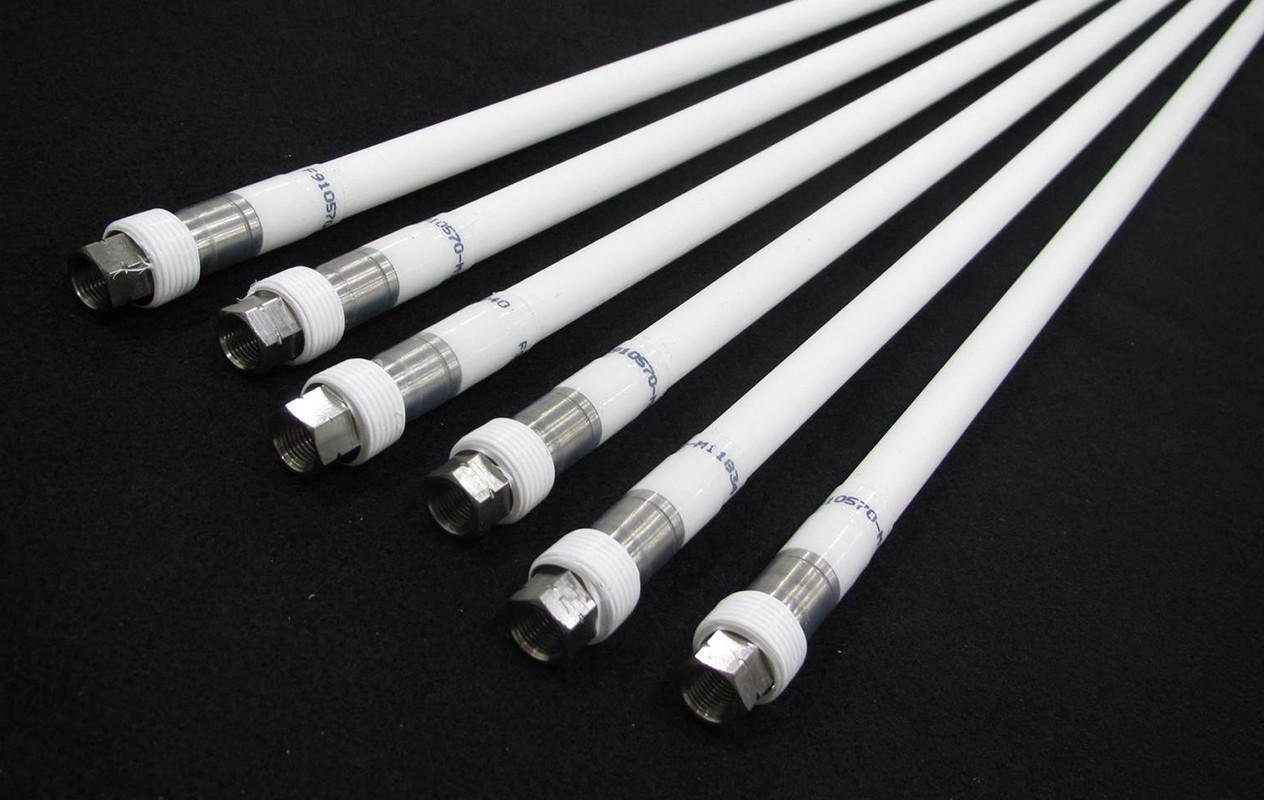

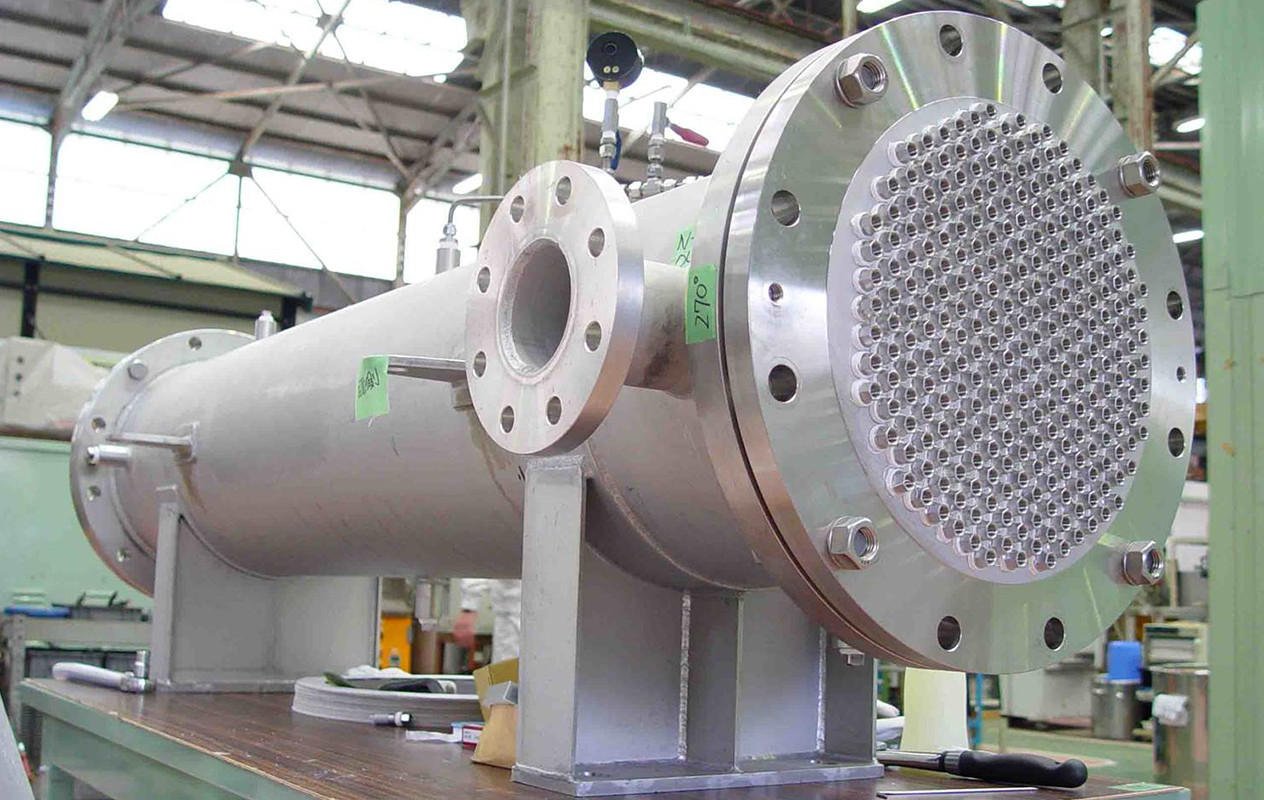

Vawn E&S Holdings Co., Ltd. (VES-HD) succeeded in putting the Zeolite Membrane into practical use in 1995. The module for the dehydrating process from the organic solvent was completed by VES-HD as the first commercial Unit of the Zeolite Membrane in 1998. Since then, VES-HD has installed many industrial scale of Zeolite Membrane Unit for dehydration of various solvent, such as EtOH, IPA, Acetone, and ester, etc. PV (Pervaporation)/VP (Vapor Permeation) is an attractive means as an effective and energy-conserving technique for dehydration of water/organic mixtures. The Zeolite Membrane offers significant potential for PV agent with high chemical and thermal stability. In order to purify washing solvent such as IPA from cleaning process in precision machinery and/or electronics industries, and to dehydrate ethanol used in bio-ethanol, food, chemical and/or pharmaceutical industry, PV/VP technology using the Zeolite Membrane can be used efficiently. (*)Zeolite Membrane Zeolite membrane is a separation membrane which can dehydrate and refine water contained organic solvent. The module of this zeolite membrane is made of tubular ceramics whose surface is coated with hydrophilic zeolite crystal with pores of below nano-level, and has an excellent performance in heat resistance and chemical resistance.
